Rutile Titanium Dioxide for Exterior White Coatings

Exterior white coatings need a titanium dioxide decision that includes the complete coating system. We review rutile candidates around treatment, dispersion and your exposure requirements. TiO2 content and powder whiteness help identify the material; formulation-specific colour, chalking and gloss-retention evidence support the durability decision.

Discuss this applicationExplore grade candidates
Define the requirement→Compare the grade→Review a trial

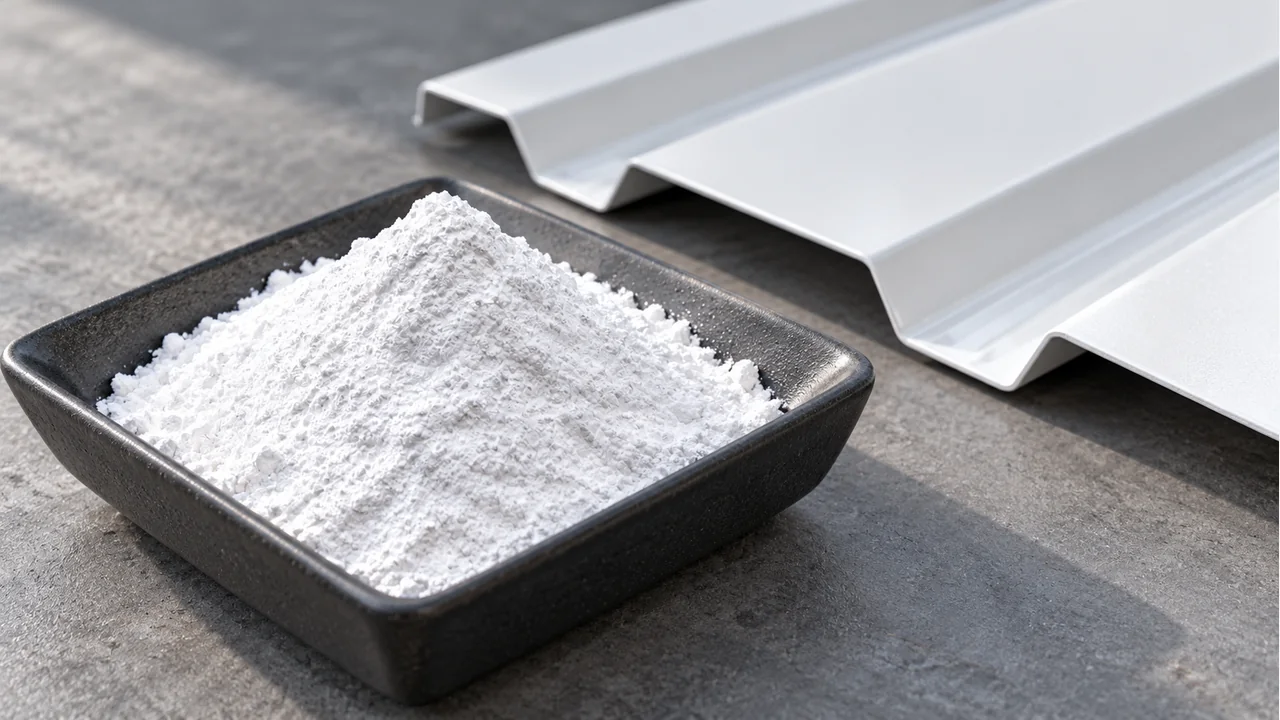

Material and application samples
Material and application samples
01 / 10
Your priorities

The Selection Framework

01

Exposure

Service and evaluation conditions

02

Pigment

Rutile identity and treatment

03

Dispersion

Your binder and process

04

Film

Colour, chalking and gloss retention

ONE APPLICATION · FOUR CONNECTED CHECKS
Use the same requirement and reporting basis for each candidate.
02 / 10
Material focus

Rutile Grades for an Exterior-Coating Brief

For an exterior-coating shortlist, we compare XM-T288, the 95%-designated rutile entry and XM-TGR1282. The latter lists average diameter 0.20–0.26 μm and oil absorption ≤22 g/100 g, alongside 95% TiO2. Those are useful powder checks; the treatment specification and complete coating still determine the durability evaluation.

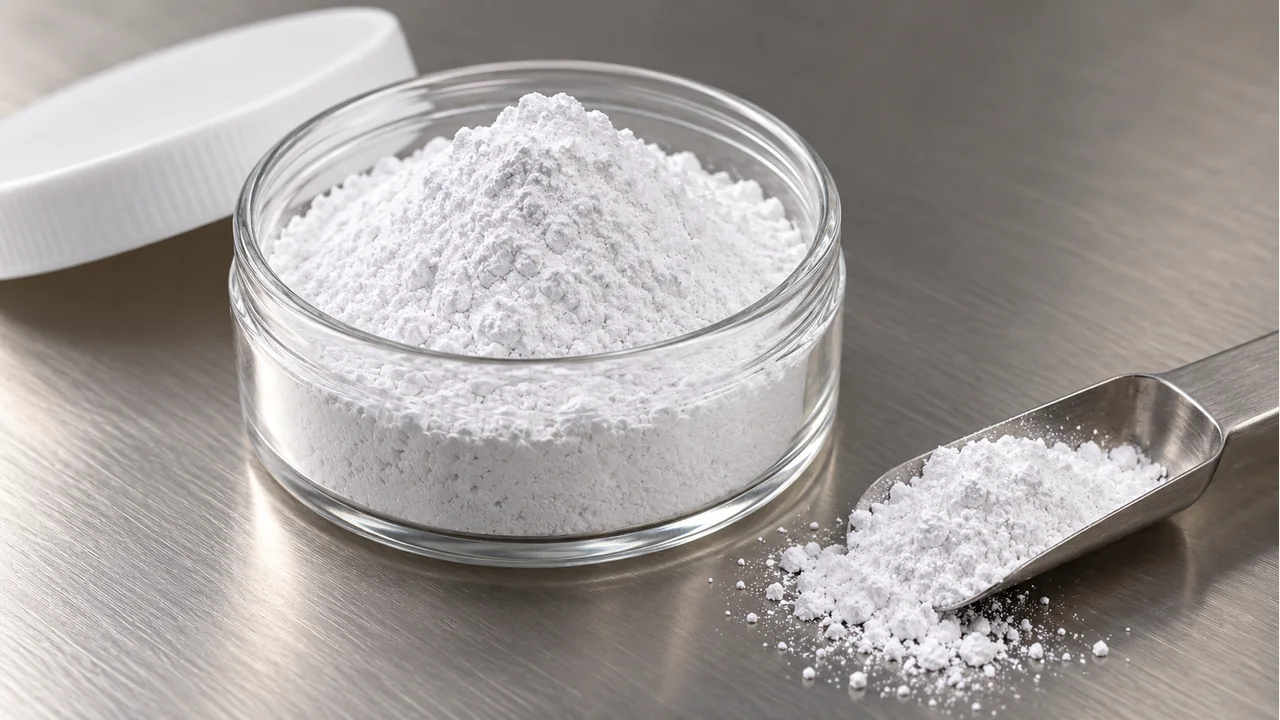

Close view of the proposed material form
Close view of the proposed material form
03 / 10
Grade comparison

Rutile Pigment Data with a Defined Scope

Review areaCatalogue detail and comparison basis
XM-T288Rutile-designated white powder; 94% listed purity. Actual treatment and measured size profile to confirm.
95%-designated rutile entryIndustrial white powder for paint, ink and plastic trials; confirm its product-specific identity and treatment.
XM-TGR1282TiO2 95%; average diameter 0.20–0.26 μm; oil absorption ≤22 g/100 g; pH 6.5–8.5 listed.
Exterior requirementCompare hiding and colour initially, then chalking, colour change and gloss retention under the agreed exposure method.
Listed figures describe catalogue entries. Agree the actual offered specification and measurement basis.
04 / 10
Actual catalogue references

Grades to Review Together

Use these listed candidates to start a grade-specific discussion with us.

01
Catalogue reference 5956
XM-T288 rutile titanium dioxide
94% listed purity; treatment and particle data to confirm.
Open the grade details →
02
Catalogue reference 5953
95%-designated rutile titanium dioxide
Industrial pigment entry; actual grade documents to confirm.
Open the grade details →
03
Catalogue reference 5876
XM-TGR1282 rutile titanium dioxide
95% TiO2; average diameter 0.20–0.26 μm listed.
Open the grade details →
Candidate entries are a starting point; the agreed specification and relevant evaluation support approval.
Explore the related material family05 / 10
Your trial and acceptance

The Complete Coating Trial

Begin with dispersion and the required initial-film measurements in your chosen binder. Continue with the relevant exposure assessment and record colour, chalking and gloss retention. Keep the exact pigment identity and formulation with that result rather than extending it to every rutile grade.

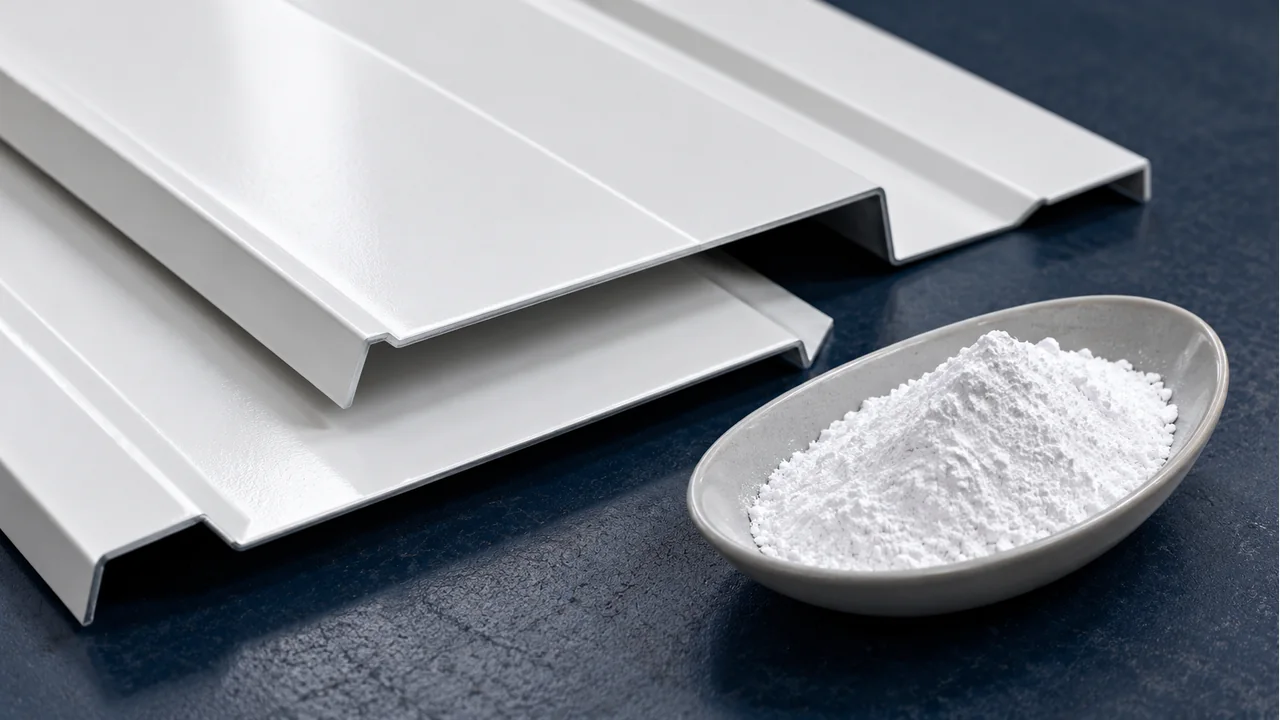

Application components for a grade review
Application components for a grade review
06 / 10
Decision controls

Selection Priorities

Check 01

Define the surface treatment

Organic matter noted in a listing does not identify a complete inorganic or organic treatment system.

Check 02

Use like-for-like optics

Keep binder, pigment balance, film preparation and measurement conditions consistent.

Check 03

Make exposure part of approval

Select the weathering and appearance criteria required by the intended service, then evaluate the complete coating.

Resolve the relevant gaps before extending a sample result into a supply decision.
07 / 10
From sample to supply

A Grade-Specific Approval

For the proposed order, identify the accepted pigment model, assay and relevant physical limits, required treatment documentation and any batch records your team needs. Review a treatment or formulation change against the same exterior-coating brief.

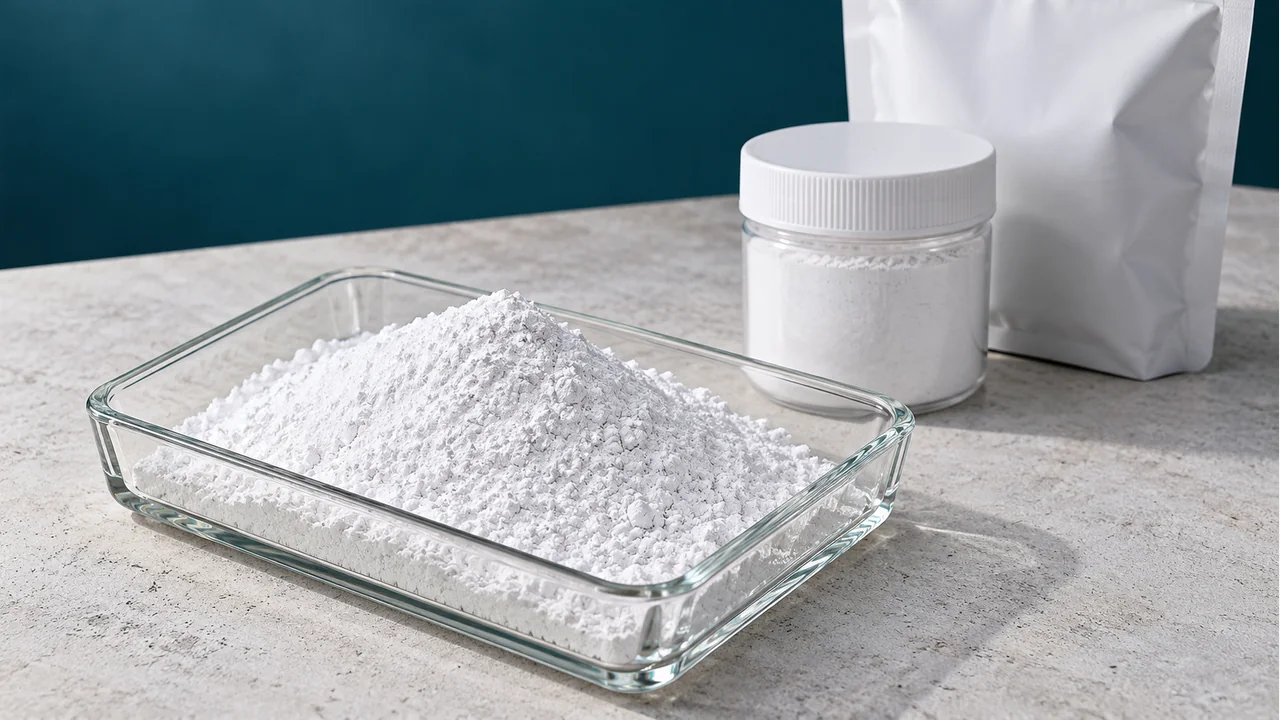

Sample and packaging preparation
Sample and packaging preparation
08 / 10
Connected guidance

Related Buying Routes

COMPARE
Explore application routes
REFINE
Read particle-size measurements
CONTINUE
Review grade documents
Continue with the route relevant to your project.
09 / 10
Work with us

Start with Your Material Brief

Send us the details below to review a concrete grade proposal and the next evaluation step.

Binder and coating systemExposure requirementsColour and gloss criteriaCurrent pigmentTrial plan
Requirement brief → grade discussion → relevant sample review.
