Industrial materials · B2B buying guide

Barium Sulfate Selection for High-Gloss Powder Coatings

A high-gloss powder coating needs a barium sulfate grade that fits your formulation, particle limits and curing process. We compare natural and precipitated candidates using their actual data, then your coated panels. A material route or purity figure starts the review; it does not decide the finish by itself.

Discuss this applicationExplore grade candidates
Define the requirement→Compare the grade→Review a trial

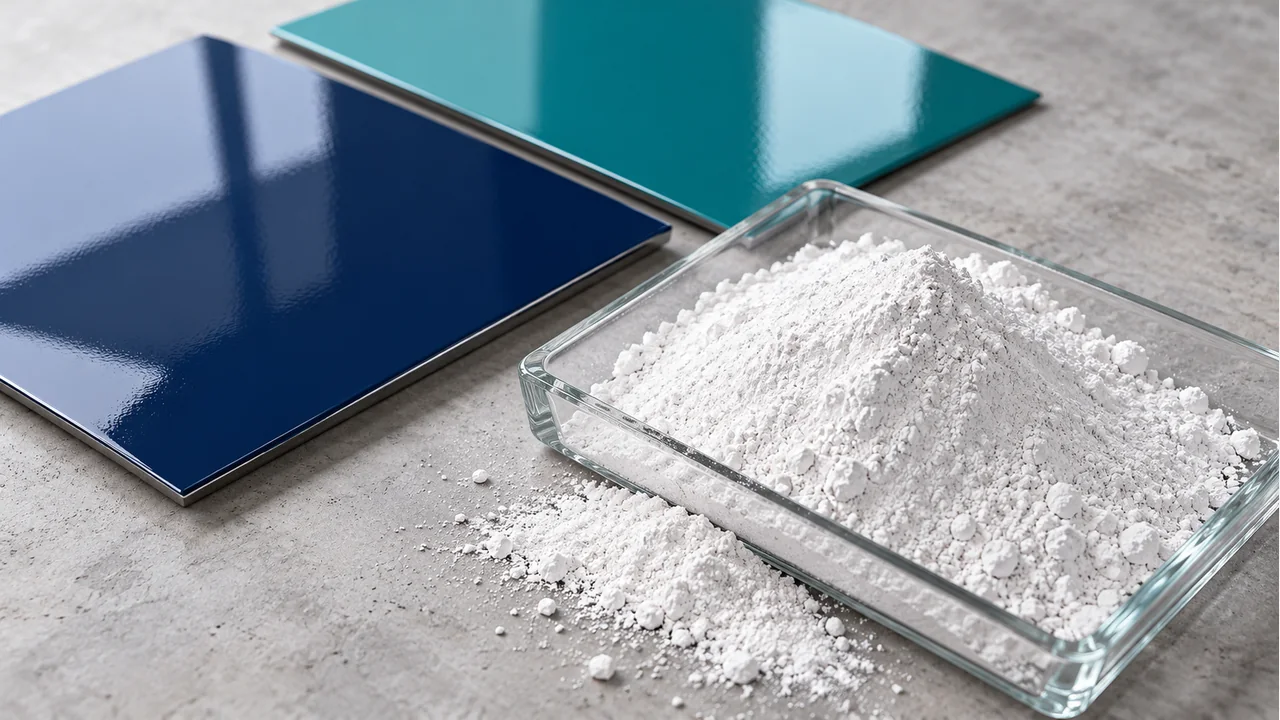

Material and application samples
Material and application samples
01 / 10
Your priorities

The Selection Framework

01

Material

Natural or precipitated route

02

Particles

Distribution and coarse tail

03

Powder data

Oil-demand and assay basis

04

Coating

Gloss and levelling at stated cure

ONE APPLICATION · FOUR CONNECTED CHECKS
Use the same requirement and reporting basis for each candidate.
02 / 10
Material focus

A Shortlist for the Required Finish

XM-PB06 is a useful first comparison when your powder-coating team needs both median and upper-percentile data: the listing gives D50 0.5–0.7 μm and D97 1.8–2.5 μm. We can compare it with the 0.7 μm D50 precipitated entry and the natural XM-BA25 route against your finished-panel target.

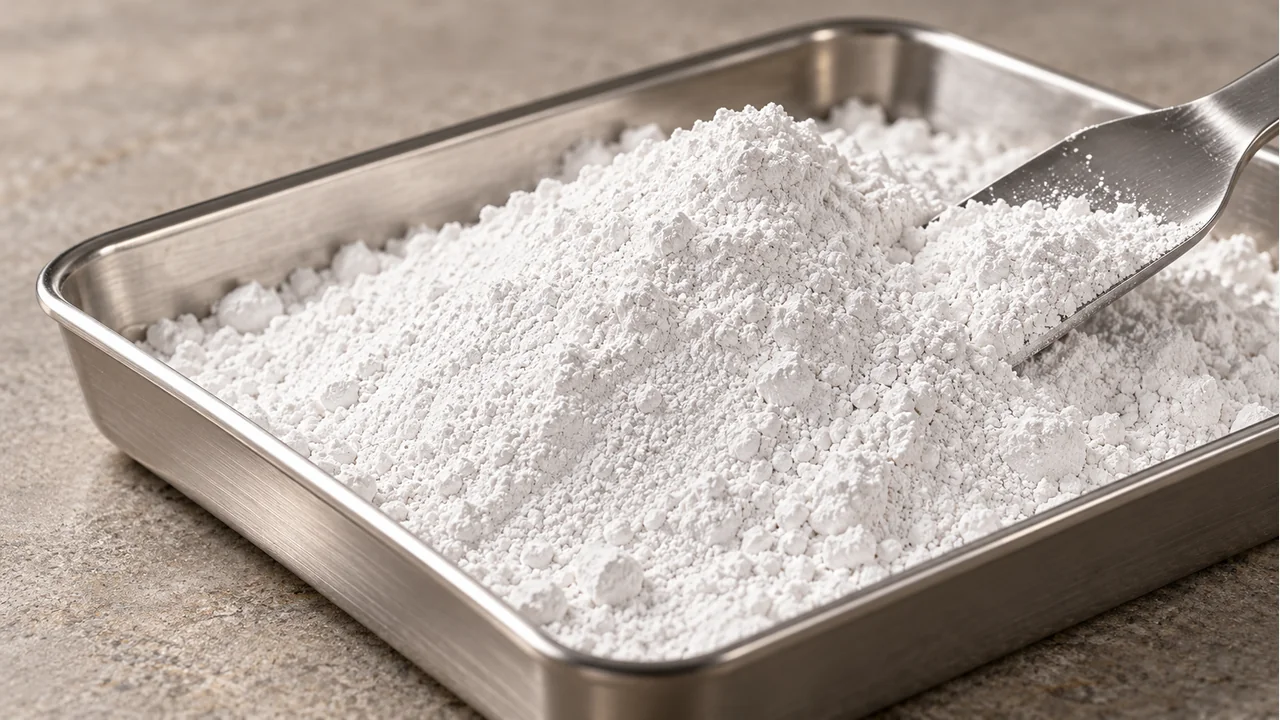

Close view of the proposed material form
Close view of the proposed material form
03 / 10
Grade comparison

Barium Sulfate Data for the Finish Review

Review areaCatalogue detail and comparison basis
XM-PB06 precipitated gradeD50 0.5–0.7 μm; D97 1.8–2.5 μm; oil absorption 13–15 g/100 g listed.
0.7 μm precipitated entryD50 0.7 μm; purity ≥98.5%; whiteness 98.5% listed. Upper-percentile data need confirmation.
XM-BA25 natural barite3000-mesh designation; no numerical gloss result or assay limit is established in its description.
Finished coatingUse the same gloss geometry, film conditions and cure schedule when comparing panels.
Listed figures describe catalogue entries. Agree the actual offered specification and measurement basis.
04 / 10
Actual catalogue references

Grades to Review Together

Use these listed candidates to start a grade-specific discussion with us.

01
Catalogue reference 5813
XM-PB06 precipitated barium sulfate
D50 0.5–0.7 μm; D97 1.8–2.5 μm listed.
Open the grade details →
02
Catalogue reference 5836
0.7 μm precipitated barium sulfate
D50 0.7 μm; purity ≥98.5% listed.
Open the grade details →
03
Catalogue reference 5755
XM-BA25 natural barite powder
3000-mesh designation; measured distribution to agree.
Open the grade details →
Candidate entries are a starting point; the agreed specification and relevant evaluation support approval.
Explore the related material family05 / 10
Your trial and acceptance

The Intended Cure Schedule

Keep binder, filler level, preparation, application and cure conditions consistent for the first panel comparison. Read instrumental gloss beside the visible surface. Powder whiteness, assay and route labels help define the material but do not replace those coating results.

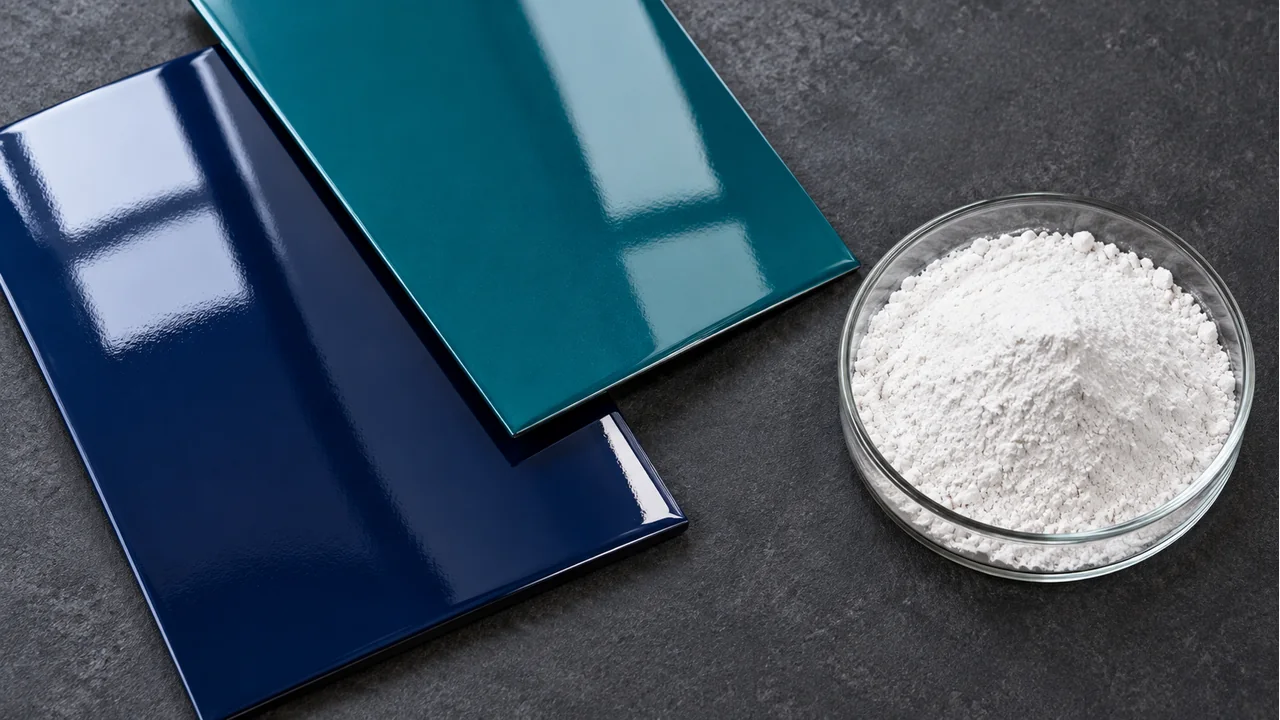

Application components for a grade review
Application components for a grade review
06 / 10
Decision controls

Selection Priorities

Check 01

Start with the reported profile

Use XM-PB06 when its stated D50/D97 window is relevant to your screening brief, then confirm the methods.

Check 02

Keep liquid demand visible

Review oil absorption with the same procedure; different methods can give different values.

Check 03

Judge the actual surface

Compare gloss, levelling and visible texture on the complete coating at the intended cure.

Resolve the relevant gaps before extending a sample result into a supply decision.
07 / 10
From sample to supply

A Finish Reference for Supply

Use the selected model, particle window and agreed powder methods in the purchase specification. Retain the approved panel reference and the sample record so a material or process change can be assessed against the finish your customer expects.

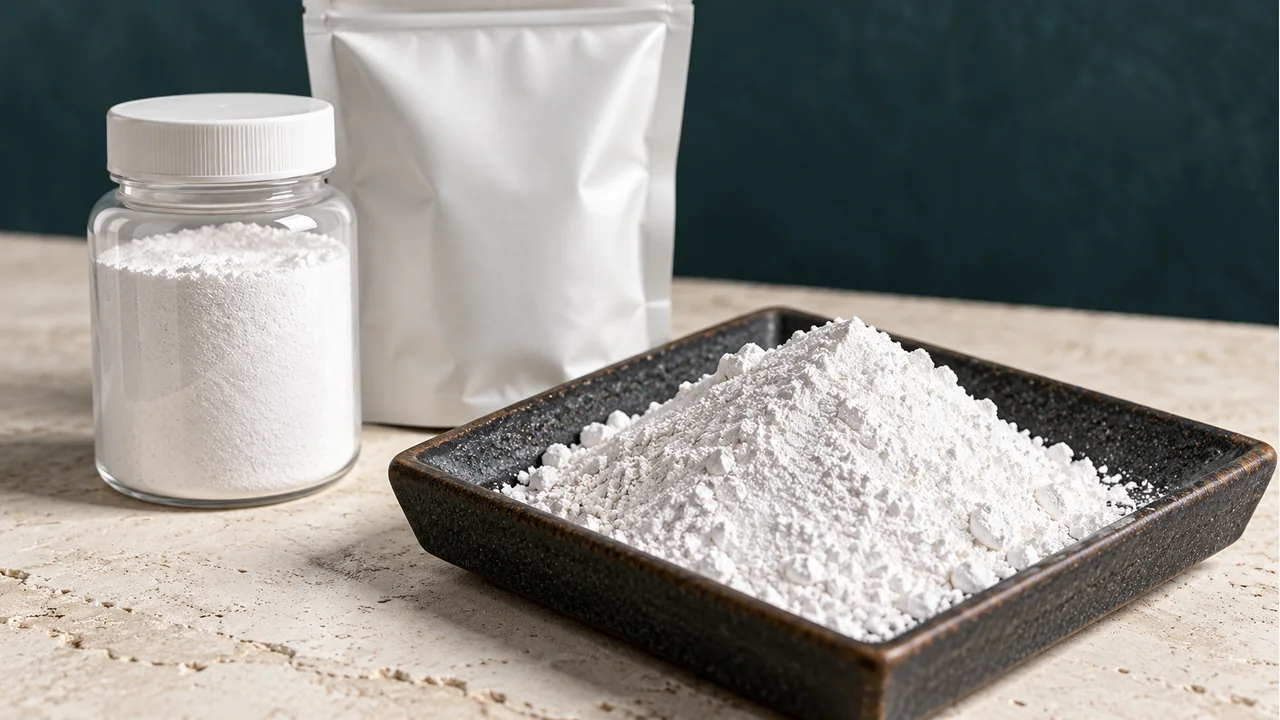

Sample and packaging preparation
Sample and packaging preparation
08 / 10
Connected guidance

Related Buying Routes

COMPARE
Compare barium sulfate and carbonate
REFINE
Read particle-size measurements
CONTINUE
Review grade documents
Continue with the route relevant to your project.
09 / 10
Work with us

Start with Your Material Brief

Send us the details below to review a concrete grade proposal and the next evaluation step.

Powder-coating systemGloss and surface targetsCurrent fillerCure conditionsTrial quantity
Requirement brief → grade discussion → relevant sample review.
Compare High-Gloss Powder-Coating GradesEmail the material brief
Read the SDS, TDS and COA guide · Explore all buying guides
